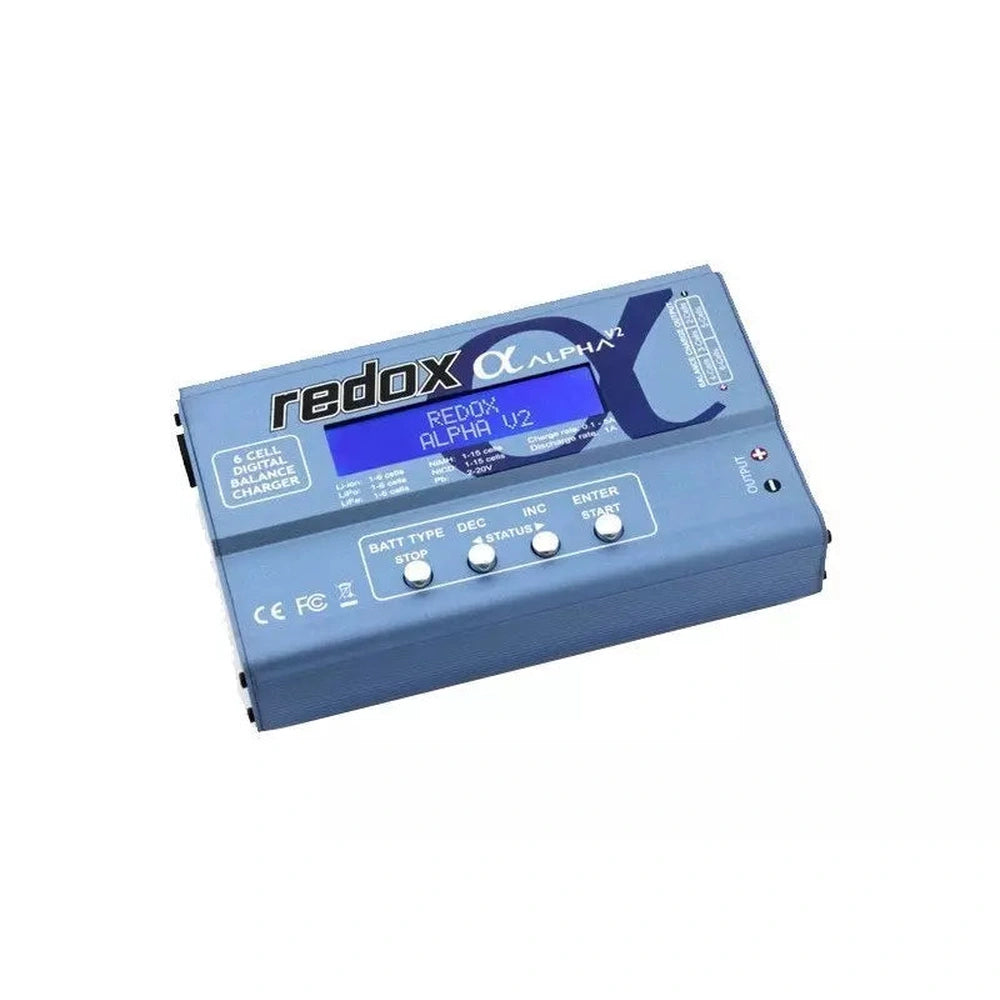

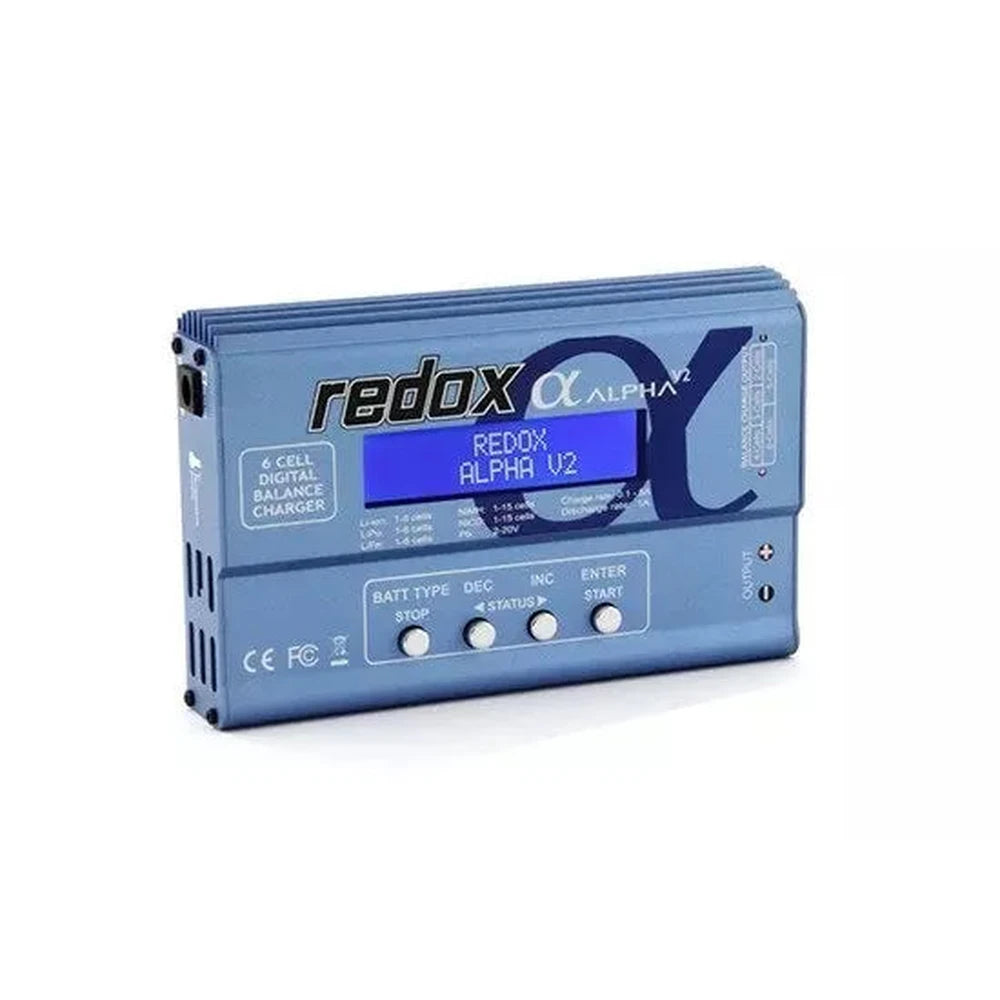

Redox Alpha V2 Microprocessor Battery Charger

A new, improved version of the popular Redox Alpha charger. Redox Alpha V2 is equipped with updated software, which ensures long and stable operation of the device. In addition, a large radiator is installed on the top of the charger, which very effectively dissipates heat. It is possible to change the charging current of the charger and monitor the voltage of each cell during the charging process!

Charger information:

Dimensions: 134 x 86 x 26 mm

Operating voltage: DC 11.0 ~ 18.0 V

Output power: 0.5V DC 10V:

Maximum charging power 50 W

Maximum discharge power 5 W

Charging current: 0.1~5.0 A

Discharge current: 0.1~1.0A

Balancing current intensity: 300 mAh/cell

Number of NiCD/NiMH cells supported: 1~15 cells

Number of Li-Po/Fe/Ion cells supported: 1~6 cells

Supported Pb elements: 2~20V

Charger built-in memory: maximum 5 battery packs

Battery pack cycling function

4 programming buttons

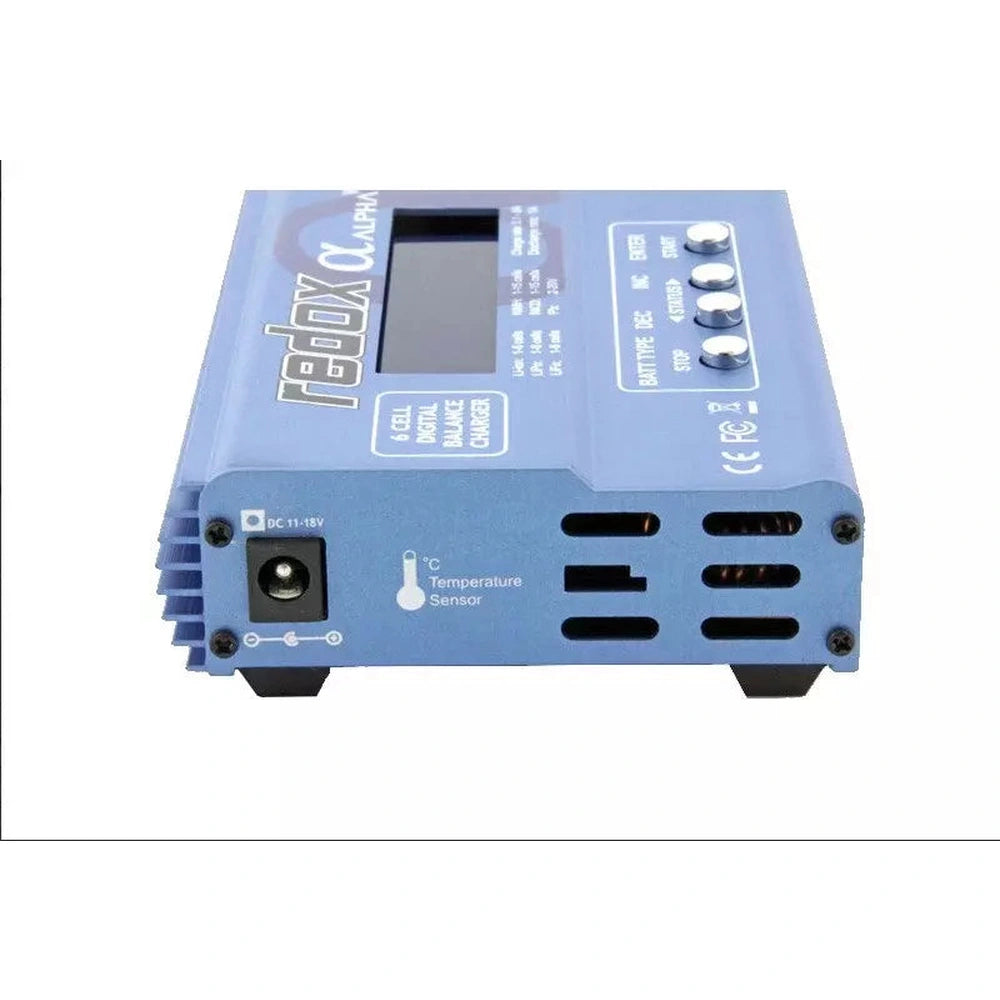

Built-in sockets:

- Balancer sockets 2s, 3s, 4s, 5s, 6s,

- Gold 4 mm sockets,

- Jack type socket (operates with 12V DC),

optional temperature sensor socket,

The set includes:

- Redox Alpha V2 charger,

- 12V DC power cord (Jack - crocodile clips),

- 1 x gold 4 mm adapter - DEAN plug,

- additional extension adapters for gold 4mm adapter - DEAN plug adapter:

- 1 x DEAN adapter plug - crocodiles.

- 1 x DEAN adapter plug - Servo socket (FUTABA type).

- 1 x DEAN adapter plug - spark plug dummy (for charging 1.5V clips).

- 1 x DEAN adapter plug - Tamiya Large

!! The charger is sold without a power supply !!
